Thermal Shrinking Packaging Machine DSA4020
We can make modifications to the size of the shrink unit according to customer’s requirements
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
| Weight | 250 kg |
|---|---|
| Dimensions | 170 × 60 × 130 cm |
Processor
| Weight | 250 kg |
|---|---|
| Dimensions | 170 × 60 × 130 cm |
Display
| Weight | 250 kg |
|---|---|
| Dimensions | 170 × 60 × 130 cm |
RAM
| Weight | 250 kg |
|---|---|
| Dimensions | 170 × 60 × 130 cm |
Storage
| Weight | 250 kg |
|---|---|
| Dimensions | 170 × 60 × 130 cm |
Video Card
| Weight | 250 kg |
|---|---|
| Dimensions | 170 × 60 × 130 cm |
Connectivity
| Weight | 250 kg |
|---|---|
| Dimensions | 170 × 60 × 130 cm |
Features
| Weight | 250 kg |
|---|---|
| Dimensions | 170 × 60 × 130 cm |
Battery
| Weight | 250 kg |
|---|---|
| Dimensions | 170 × 60 × 130 cm |
General
| Weight | 250 kg |
|---|---|
| Dimensions | 170 × 60 × 130 cm |
Description
Specification:
Model: DS-A4020
Power source: 220V 50–60Hz
Power: 7.5KW
Conveyor speed: 0–10m/min
Tunnel size (L×W×H): 800 × 400 × 200mm
Conveyor loading: 5kg
Machine size (L×W×H): 1310 × 720 × 880mm
Product Description

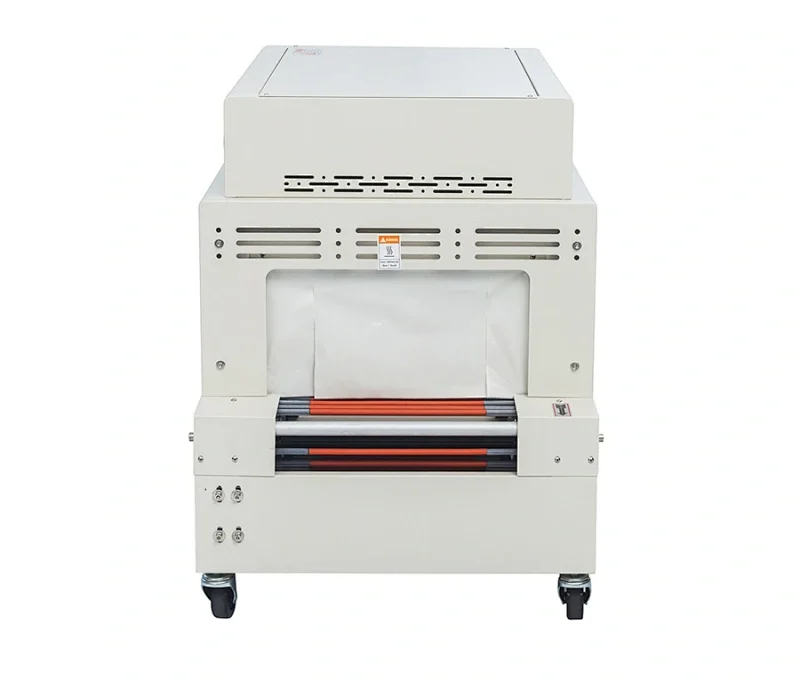

DS-A4020 thermal shrink packaging machine is suitable to shrink thin shrink films such as POF, PVC, PP, POP, etc with far-infrared radiation. The thickness of shrink film should be in the range of 0.01-0.04 mm. Quartz heating pipes are located on the top, bottom and sides of the shrinking tunnel. The temperature of the shrink room and the speed of the conveyer are adjustable. And the size of shrink tunnel can be customized. Conveyor has option of chain roller and iron net conveyor for choice.
Features:

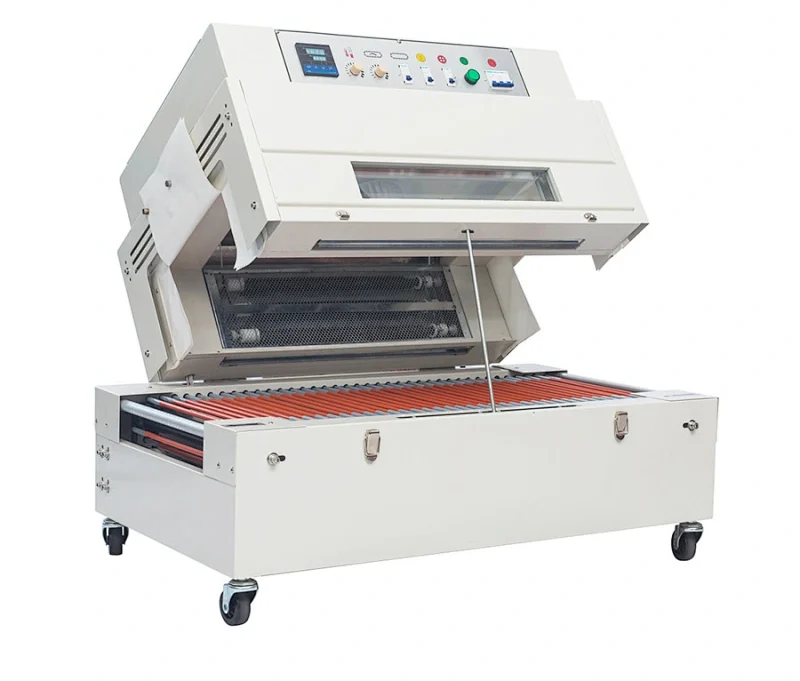

1. The lid can be open and bottom tray can be pulled out for the convenience of replacing heating pipesCompact construction, high efficiency;
2. Voltage of down heating pipes is adjustable through solid-booster, in order to control down temperature. The temperature of whole shrink tunnel is controlled through AC contactor.
3. Strong air-flow ensures excellent heat distribution for an even shrinking;
4. Intelligent temperature controlling system makes the operation easily;
5. The speed of the conveyer is adjustable
