PE Film shrink packaging machine BSE6040
1 in stock (can be backordered)
Features:
This machine based on sleeve wrapper machine.It suitable for large carton outside PE film wrapper .Customer use that kind of machine to keep carton safe and clean.It also helps people to carry it easy.
Advantage of the machine:
1.High-power of fan motor make great shrink effect.
2.Using Teflon cover for cutter,film sealing part fastness
3.human-computer interface——–1).automatic calculation of package length.2)It can save packing plan for next time.
Specifaication:
| Model | DQX6040S | DSE-8060A |
| Voltage | 220-240V/50-60HZ | 380V,50HZ |
| Power | 1.5KW | 43.6KW |
| Speed | 0-12m/min | 0-10m/min(conveyor speed) |
| Min packing size(L*W*H ) | 120*120*80mm | Tunnel size(L*W*H ):2000*800*600mm |
| Max packing size(L*W*H ) | 120*600*450mm(width and height can’t at max packing size at same time) | |
| Machine size(L*W*H ) | 1952*1155*1846mm | 3435*1138*1850mm |
| Loading weight | 20kg | 30kg |
| Thickness | 0.03-0.25mm | |
| Film | PE | PE,POF,PVC,PP |
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
| Weight | 400 kg |
|---|---|
| Dimensions | 200 × 170 × 200 cm |
Processor
| Weight | 400 kg |
|---|---|
| Dimensions | 200 × 170 × 200 cm |
Display
| Weight | 400 kg |
|---|---|
| Dimensions | 200 × 170 × 200 cm |
RAM
| Weight | 400 kg |
|---|---|
| Dimensions | 200 × 170 × 200 cm |
Storage
| Weight | 400 kg |
|---|---|
| Dimensions | 200 × 170 × 200 cm |
Video Card
| Weight | 400 kg |
|---|---|
| Dimensions | 200 × 170 × 200 cm |
Connectivity
| Weight | 400 kg |
|---|---|
| Dimensions | 200 × 170 × 200 cm |
Features
| Weight | 400 kg |
|---|---|
| Dimensions | 200 × 170 × 200 cm |
Battery
| Weight | 400 kg |
|---|---|
| Dimensions | 200 × 170 × 200 cm |
General
| Weight | 400 kg |
|---|---|
| Dimensions | 200 × 170 × 200 cm |
Description
Product Description

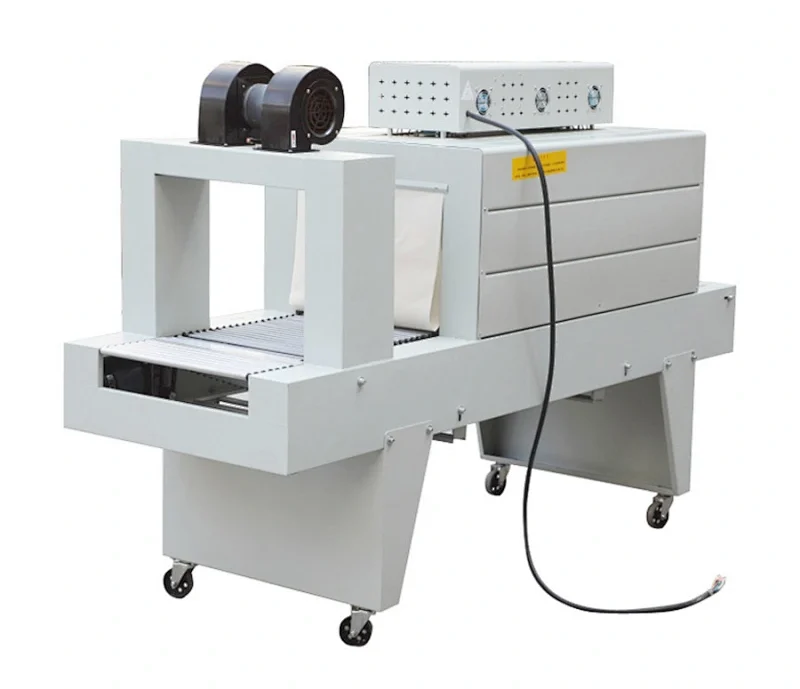

The BSE series PE film shrink packaging machine is designed especially for PE shrink film. However it is suitable for other types shrink films.
The machine adopts digital temperature controller, which makes operation easier.
Quartz heating pipes are located on the top, bottom and sides of the shrinking tunnel.
Two fans in electricity box cools down electricity box in order to protect electronics.
Conveyor motor cools down by fan underneath.
The powerful fan produces even hot airflow inside of shrink tunnel.
The speed of the conveyer is adjustable.
Conveyor has option of chain roller and iron net conveyor for choice.
Specification:
| Model | BSE6040 |
| Power supply | 3phase 220V/380V 50-60HZ |
| Heater power | 26KW Adjuster |
| Conveyer speed | 0-10m/minute |
| Tunnel size(L*W*H) | 1200*600*400mm |
| Conveyer loading | 25KGS MAX. |
| Machine size | 2200*880*1570mm |
| Machine weight | 285KG |
| Shrink film | PE,POF,PVC,PP |
