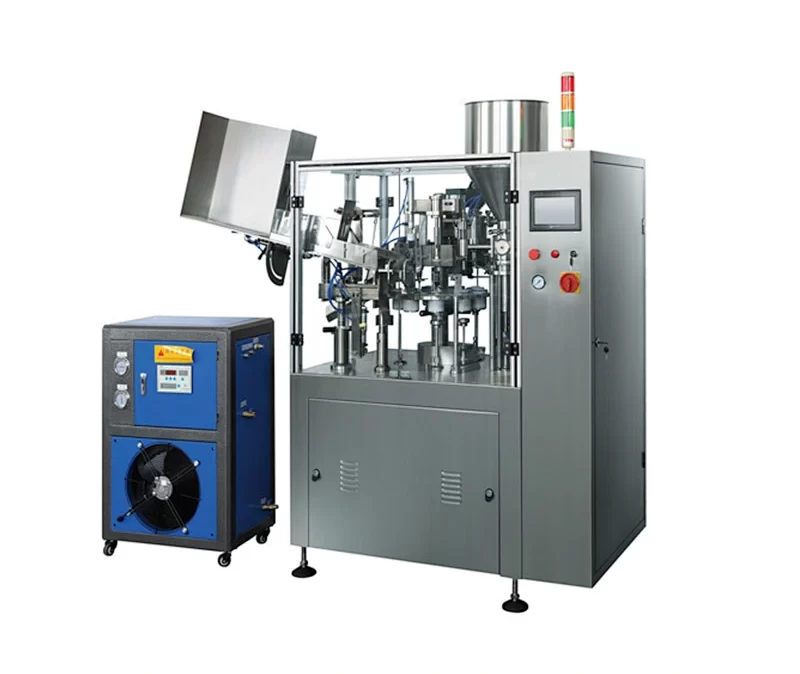

FWJ-60A Automatic tube filling and sealing machine
R680 000.00 ex. VAT
Available on backorder
Available on backorder
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
From $20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From $40
-
Warranty 1 year
-
Free 30-Day returns
Specification
Overview
Processor
Display
RAM
Storage
Video Card
Connectivity
Features
Battery
General
Description
Feature and description of the machine
This machine is a high-tech product which successfully developed and designed by adopting advanced technology from abroad and strictly meet GMP requirement. PLC controller and color touch screen are applied and made it possible for programmable control of the machine. It can perform the filling for ointment, cream jellies or viscosity material, tail folding, batch number embossing (include manufacture date) automatically. It’s ideal equipment for lead tube, ALU tube, plastic tube and laminated tube filling and sealing for cosmetic, pharmacy, foodstuff and bond.
• Motor, controlled by AC inverter.
•304Stainless Steel to meet GMP Standard
•Automated Pneumatic Tube Loading System
• Siemens PLC controller and color touch screen
•Automatic  Eye mark System andTube counting sensor
• Digital and Intelligent Temperature controllers and Cooling Systems,suitable for various tubes sealing. Â
• With safety switch ,more safe .
. Usually the Tube diameter and mould with sizes:
12.16， 19， 22， 25， 28 .30， 35， 40， 45， 50mm
| Model | FWJ-60A/FWJ-60B |
| Tube material | Plastic Composite/Aluminum plastic composite tubes |
| Tubediameter | Φ15—Φ50mm (plastic tube ) Φ15—Φ30mm(metal tube ) |
| Tube length | 80-250mm（customizable） |
| Filling volume | 5—600ml/tube（adjustable） |
| Filling accuracy | ≤±1% |
| Product capacity（pc/h） | 30-60tubes/min |
| PRESSURED AIR | 0.55-0.65mpa (better to use more than 1mpa) |
| Motor power | 1.1kw(380V/220V 50Hz ,three phase) |
| Heat sealing power | 3.0kw |
| Machine size (mm) | 2620*1020*1980 |
| Machine weight(kg) | 800 |
